COMPUTER ASSEMBLY SIMULATION

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>RAM Clips</h3>Push these clips open before trying to insert RAM.

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>RAM Clips</h3>Push these clips open before trying to insert RAM.

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Hard Drive Caddy</h3>Click here to open the hard drive caddy ready to accept the hard drive. Remember to close it after inserting the hard drive

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>CPU Fan Plug</h3>Drag the CPU fan plug to the cpu fan socket on the motherboard.

INSTRUCTIONS

Click on a part below then drag and place onto the work area. You can drag a part off the work area to remove it and reposition the part.

Progress:

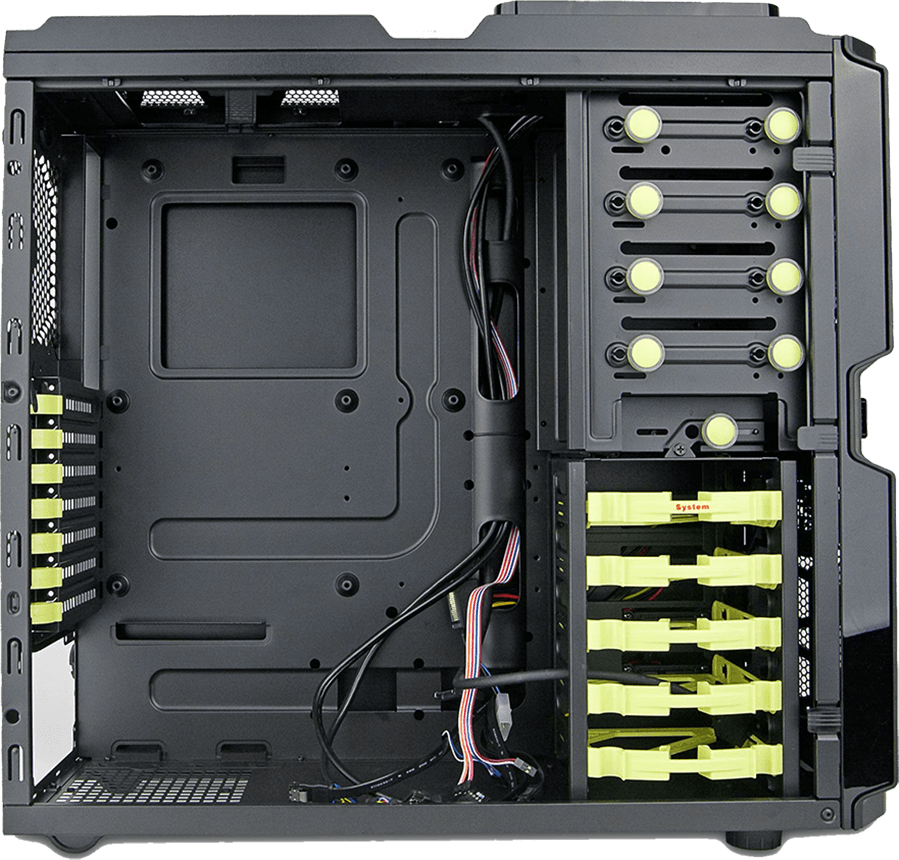

CASE

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Standoff Screw</h3>Click and drag a standoff to a hole inside the case. Check the holes in your motherboard to locate the correct holes in the case. Make sure you use your mouse to screw each standoff in

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>SATA Hard Drive</h3>Click and drag the hard drive to the correct position in the case. Make sure it is the right way around and the hard drive caddy is ready

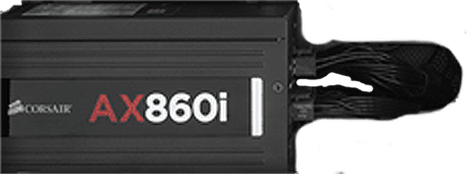

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Power Supply</h3>Click and drag the power supply to the appropriate position in the case. Make sure the power supply is around the correct way

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>ROTATE Power Supply</h3>Click here to turn the power supply around

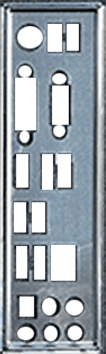

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>I/O Shield</h3>Click and drag the I/O shield to the correct position within the case. Make sure it is the right way around

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>ROTATE I/O Shield</h3>Click here to turn I/O shield around

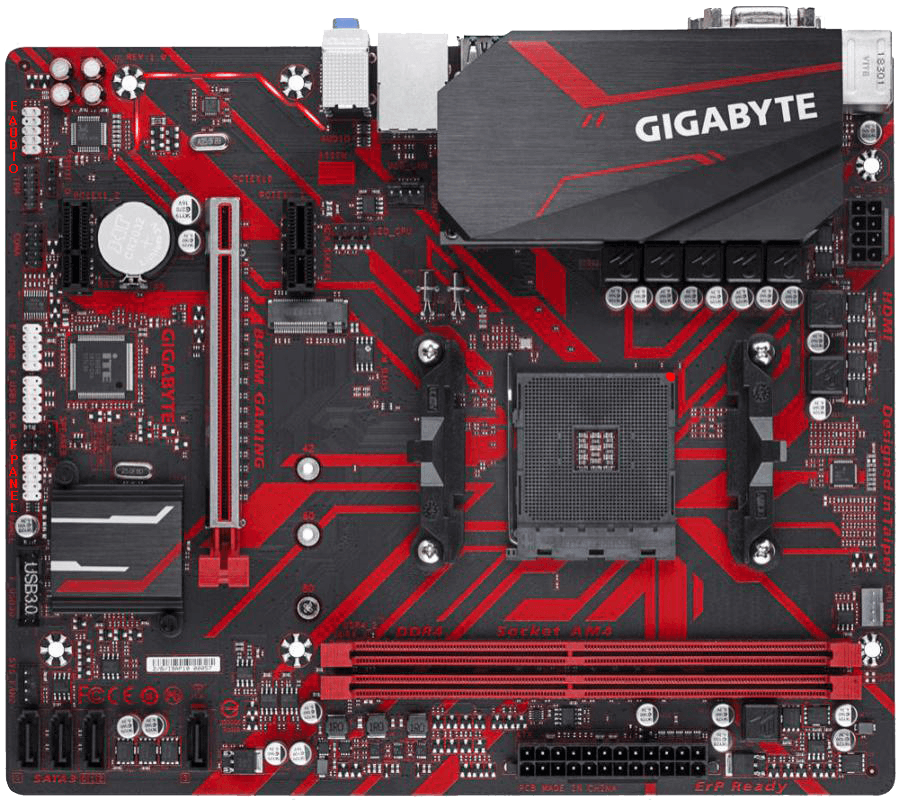

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Motherboard</h3>Click and drag the motherboard to the correct position in the case. Make sure the motherboard is the correct way around and the case is ready for it to be placed

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>ROTATE Motherboard</h3>Click here to turn the motherboard around

HARDWARE

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Philips Screw</h3>Click and drag a screw to a hole on the motherboard. Make sure you use your screwdriver / mouse to screw each screw in

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Heatsink Compound</h3>Click and drag the heatsink compound to the CPU, Shake vigorously over the CPU to apply

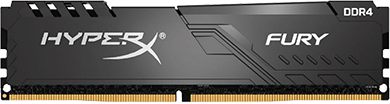

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>DDR4 RAM</h3>Click and drag the RAM to the appropriate slot on the motherboard. Make sure the RAM is around the correct way

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>ROTATE RAM</h3>Click here to turn the RAM around

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>AMD CPU</h3>Click and drag the CPU to the correct position on the motherboard. Make sure it is the right way around

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>ROTATE CPU</h3>Click here to turn the CPU around

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Heatsink & Fan</h3>Click and drag the heatsink to the correct position on the motherboard. Make sure you plug the fan in afterwards

CABLES

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>12V ATX POWER</h3>Click and drag the 8pin ATX power plug to the correct position on the motherboard.

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>24PIN ATX POWER</h3>Click and drag the 24pin ATX power plug to the correct position on the motherboard.

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Front Panel USB 3 Connector</h3>Click and drag the USB 3 plug to the correct position on the motherboard.

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Sata Power Cable</h3>Click and drag the SATA power cable to the correct sata component.

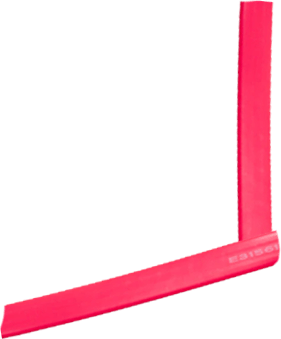

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>SATA Data Cable</h3>Click and drag the SATA data cable to the correct position on the motherboard / component.

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Front Panel Audio</h3>Click and drag the front panel audio plug to the correct position on the motherboard.

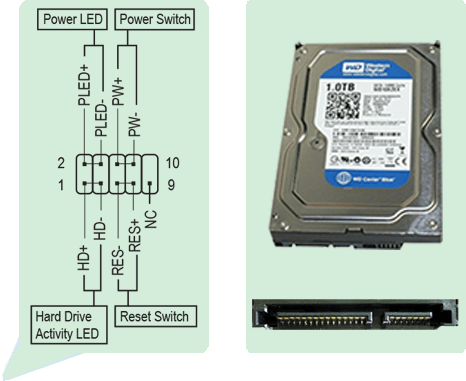

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Front Panel Power Switch</h3>Click and drag power switch to the correct position on the pin diagram

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Front Panel Power Led</h3>Click and drag power led to the correct position on the pin diagram

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Front Panel Hard Drive Led</h3>Click and drag HD LED to the correct position on the pin diagram

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Front Panel Reset Switch</h3>Click and drag reset switch to the correct position on the pin diagram

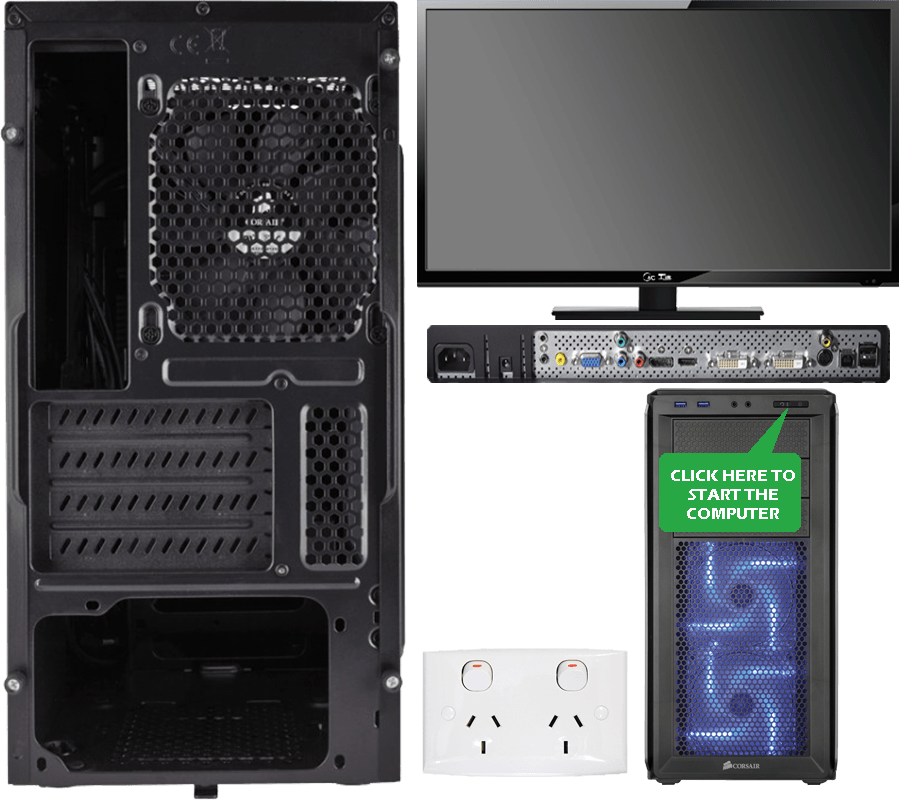

REAR PORTS

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>Philips Screw</h3>Click and drag a screw to a hole on the rear of the case. Make sure you use your screwdriver / mouse to screw each screw in

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>IEC Plug</h3>Click and drag the IEC plug to the components that need AC power

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>DVI Cable</h3>Click and drag the DVI cable to the appropriate port on the rear of the computer

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>USB Mouse</h3>Click and drag the USB mouse cable to the appropriate port on the rear of the computer

<h3 class='bg-success rounded' style='position:relative;top:0px;color:#fff;margin:10px;padding:5px;text-align:center'>USB Keyboard</h3>Click and drag the USB keyboard cable to the appropriate port on the rear of the computer

CONGRATULATIONS!

Success

You have successfully built a computer!

All components have been correctly installed, connected, and the system is now powered on. Great job!

Build Incomplete

The computer cannot be turned on yet!

Some components are still missing or not properly installed. Check your progress bar and make sure all parts are placed correctly.
